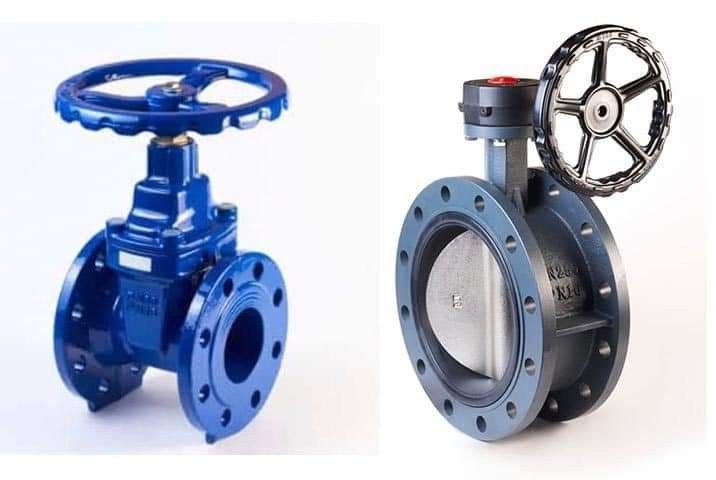

What Is a Marine Butterfly Valve?
A marine butterfly valve is a quarter-turn valve specifically designed for use in ships, offshore platforms, marine engineering projects, and seawater handling systems. These valves are engineered to withstand harsh marine environments, including saltwater exposure, humidity, vibration, and demanding operating conditions.
Marine butterfly valves are widely used because they offer:
- Compact design
- Lightweight construction
- Reliable sealing performance
- Fast opening and closing
- Excellent corrosion resistance
They are commonly installed in:
- Shipbuilding projects
- Offshore oil and gas platforms
- Ballast water systems
- Seawater cooling systems
- Firefighting systems
- Marine utility pipelines
Why Marine Systems Use Butterfly Valves
Marine vessels and offshore structures require reliable flow control solutions that can operate efficiently in limited spaces while resisting corrosion.
Key Advantages
- Space-saving design
- Lower weight compared to gate valves
- Quick quarter-turn operation
- Easy automation
- Reduced maintenance requirements
- Cost-effective installation
These benefits make butterfly valves one of the most commonly used valve types in marine engineering.
How Does a Marine Butterfly Valve Work?
A marine butterfly valve controls flow through a rotating disc mounted on a central shaft.
When the stem rotates:
- The disc aligns with the pipeline to allow flow.
- The disc turns perpendicular to the flow path to stop flow.
- Intermediate positions regulate flow.
Valve Position Overview
| Disc Position | Valve Status |
|---|---|
| 0° | Fully Closed |
| 45° | Flow Regulation |
| 90° | Fully Open |
This simple design ensures reliable operation and fast response in marine systems.
Types of Marine Butterfly Valves
Wafer Marine Butterfly Valve
Wafer valves are installed between pipeline flanges.
Advantages
- Lightweight construction
- Compact installation
- Cost-effective design
Applications
- Utility pipelines
- Cooling water systems
- Shipboard services
Lug Marine Butterfly Valve
Features threaded inserts around the valve body.
Benefits
- Independent line isolation
- Easier maintenance
Applications
- Engine room systems
- Process pipelines
Flanged Marine Butterfly Valve
Flanged valves provide stronger connections for larger systems.
Advantages
- Secure installation
- Excellent stability
- Suitable for large-diameter pipelines
Applications
- Ballast systems
- Offshore facilities
- Seawater distribution networks
Double Offset Marine Butterfly Valve
Provides:
- Reduced seat wear
- Improved sealing
- Longer service life
Applications:
- Marine cooling systems
- Offshore processing units
Triple Offset Marine Butterfly Valve
Designed for severe service conditions.
Benefits
- Metal-to-metal sealing
- High-temperature resistance
- Near-zero leakage
Applications:
- Offshore oil and gas platforms
- Marine fuel systems
Materials Used in Marine Butterfly Valves
Ductile Iron Marine Butterfly Valve
Commonly used with protective coatings.
Benefits
- High strength
- Cost-effective
- Suitable for water service
Applications:
- Ballast water systems
- Utility services
Stainless Steel Marine Butterfly Valve
Provides:
- Excellent corrosion resistance
- Long service life
- High reliability
Applications:
- Seawater systems
- Offshore installations
Duplex Stainless Steel Marine Butterfly Valve
One of the preferred materials for harsh marine environments.
Advantages
- Superior resistance to seawater corrosion
- High mechanical strength
- Excellent durability
Applications:
- Offshore platforms
- Desalination systems
Bronze and Nickel-Aluminum Bronze Valves
Used for specialized marine applications due to excellent seawater resistance.
Applications of Marine Butterfly Valves
Ballast Water Systems
Butterfly valves regulate water intake and discharge during vessel stabilization operations.
Seawater Cooling Systems
Used to control seawater circulation for:
- Main engines
- Auxiliary engines
- Heat exchangers
Firefighting Systems
Installed in:
- Fire main systems
- Emergency response networks
Reliable operation is essential for vessel safety.
Bilge and Drainage Systems
Butterfly valves help manage wastewater and drainage operations onboard ships.
Offshore Oil and Gas Platforms
Applications include:
- Seawater injection systems
- Utility pipelines
- Process water networks
Corrosion Resistance in Marine Butterfly Valves
Marine environments expose valves to:
- Saltwater
- High humidity
- Chlorides
- Temperature fluctuations
To improve corrosion resistance, manufacturers often use:
Protective Measures
- Fusion-bonded epoxy coatings
- PTFE linings
- Stainless steel components
- Duplex stainless steel construction
These features significantly extend valve lifespan.
Advantages of Marine Butterfly Valves
Corrosion Resistance
Designed to withstand aggressive marine environments.
Compact and Lightweight
Reduces vessel weight and installation space requirements.
Easy Automation
Compatible with:
- Electric actuators
- Pneumatic actuators
- Hydraulic actuators
for remote operation.
Low Maintenance Costs
Durable materials and protective coatings reduce servicing needs.
Long Service Life
Proper material selection ensures years of dependable operation.
How to Choose the Right Marine Butterfly Valve
Evaluate Service Conditions
Consider:
- Seawater exposure
- Pressure requirements
- Operating temperature
Choose Appropriate Materials
Recommended materials include:
- Stainless steel
- Duplex stainless steel
- Nickel-aluminum bronze
Select the Correct Valve Type
Options include:
- Wafer
- Lug
- Flanged
- Double offset
- Triple offset
depending on application requirements.
Check Marine Certifications
Ensure compliance with marine industry standards.
Marine Standards and Certifications
Reliable marine butterfly valves often comply with:
- ISO standards
- IMO requirements
- ABS certification
- DNV certification
- LR certification
- BV certification
Common Tests
- Hydrostatic testing
- Seat leakage testing
- Material verification
- Corrosion resistance testing
- Functional testing
Industry references:
Frequently Asked Questions
What is a marine butterfly valve?
A butterfly valve specifically designed for ships, offshore platforms, and marine systems operating in seawater and harsh environmental conditions.
Which materials are best for marine butterfly valves?
Stainless steel, duplex stainless steel, and nickel-aluminum bronze are commonly used because of their corrosion resistance.
Can marine butterfly valves handle seawater?
Yes. Marine butterfly valves are engineered to resist corrosion caused by saltwater exposure.
Where are marine butterfly valves used?
Ballast systems, seawater cooling systems, firefighting networks, bilge systems, and offshore platforms.
Can marine butterfly valves be automated?
Yes. They can be equipped with electric, pneumatic, or hydraulic actuators.
What certifications should marine butterfly valves have?
Common certifications include ABS, DNV, LR, BV, and compliance with IMO requirements.
Conclusion
A marine butterfly valve is an essential component in shipbuilding, offshore engineering, and seawater handling systems. Designed to withstand corrosive marine environments, these valves provide reliable flow control, excellent sealing performance, and long service life.
Whether used in ballast water systems, cooling networks, firefighting systems, or offshore oil and gas facilities, selecting the right marine butterfly valve ensures safe operation, reduced maintenance costs, and dependable performance in some of the world’s most demanding conditions.
