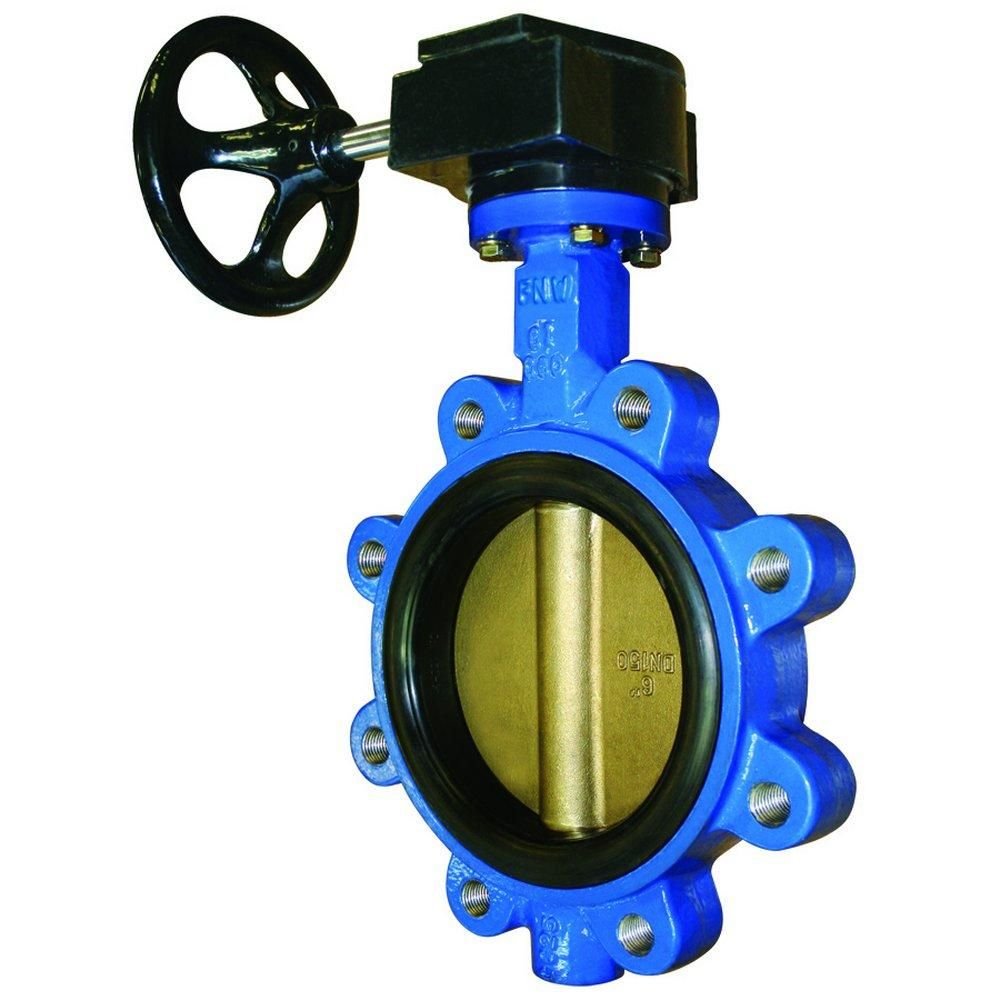

What Is a High Performance Butterfly Valve?
A high performance butterfly valve is an advanced butterfly valve design engineered to provide superior sealing, higher pressure capability, and extended service life compared to standard resilient-seated butterfly valves. These valves are commonly used in demanding industrial applications where reliability, durability, and precise flow control are critical.
Unlike conventional butterfly valves, high performance designs typically feature a double-offset disc configuration, which minimizes seat wear and reduces operating torque. This allows the valve to perform efficiently under higher pressures, elevated temperatures, and more challenging process conditions.
Industries that commonly use high performance butterfly valves include:
- Oil and gas
- Chemical processing
- Power generation
- Petrochemical plants
- Marine systems
- Industrial manufacturing
How Does a High Performance Butterfly Valve Work?
A high performance butterfly valve operates using a quarter-turn mechanism. The disc rotates within the valve body to regulate or stop fluid flow.
The key difference lies in the offset stem design:
- The stem is positioned behind the disc centerline.
- The shaft is offset from the pipe centerline.
- Contact between the disc and seat occurs only during the final closing stage.
This design reduces friction, improves sealing efficiency, and significantly extends valve life.
Operating Positions
| Position | Function |
|---|---|
| 0° | Fully Closed |
| 45° | Flow Regulation |
| 90° | Fully Open |
Key Features of High Performance Butterfly Valve
Double Offset Design
The double-offset construction provides:
- Reduced seat wear
- Lower operating torque
- Improved sealing performance
Bi-Directional Sealing
Many high performance butterfly valves can provide reliable sealing in both flow directions.
High Pressure Capability
These valves are designed to handle:
- PN16
- PN25
- PN40
- ANSI Class 150
- ANSI Class 300
depending on design specifications.
Extended Service Life
Reduced friction between the disc and seat minimizes wear, leading to longer operational life.
Advantages of High Performance Butterfly Valve
Superior Sealing Performance
The valve provides tight shutoff even in demanding operating environments.
Lower Maintenance Costs
Because seat wear is minimized, maintenance intervals are longer compared to standard butterfly valves.
High Temperature Resistance
Metal-seated designs can withstand elevated temperatures found in industrial processes.
Compact and Lightweight Design
Compared with gate valves and globe valves, high performance butterfly valves require less space and weigh significantly less.
Excellent Flow Characteristics
The streamlined disc design reduces pressure loss and improves system efficiency.
Common Materials Used
Stainless Steel
Benefits include:
Applications:
- Chemical processing
- Marine systems
- Food production
Carbon Steel
Advantages:
- High strength
- Pressure resistance
- Cost-effective performance
Applications:
- Oil and gas
- Power generation
- Industrial processing
Duplex Stainless Steel
Provides:
- Enhanced corrosion resistance
- High mechanical strength
- Improved durability
Suitable for offshore and marine environments.
Types of High Performance Butterfly Valve
Soft-Seated High Performance Butterfly Valve
Features:
- Bubble-tight shutoff
- Excellent sealing performance
- Cost-effective solution
Applications:
- Water treatment
- HVAC systems
- General industrial service
Metal-Seated High Performance Butterfly Valve
Benefits:
- High-temperature resistance
- Wear resistance
- Longer service life
Applications:
- Steam systems
- Refineries
- Petrochemical facilities
Fire-Safe High Performance Butterfly Valve
Designed to maintain sealing integrity during fire exposure.
Applications:
- Oil and gas facilities
- Petrochemical plants
- Offshore platforms
Industrial Applications
Oil and Gas Industry
High performance butterfly valves are widely used in:
- Pipeline systems
- Refineries
- Storage terminals
- Offshore platforms
Their ability to handle high pressures and challenging environments makes them ideal for energy applications.
Chemical Processing Plants
These valves provide reliable performance when handling:
- Corrosive chemicals
- Acids
- Solvents
- Process fluids
Power Generation
Power plants use high performance butterfly valves in:
- Cooling water systems
- Steam applications
- Utility pipelines
Marine Industry
Marine systems require valves capable of resisting corrosion and operating reliably in harsh environments.
Industrial Manufacturing
Used for:
- Process control
- Utility systems
- Compressed air networks
High Performance Butterfly Valve vs Standard Butterfly Valve
| Feature | High Performance Butterfly Valve | Standard Butterfly Valve |
|---|---|---|
| Design | Double Offset | Center Line |
| Pressure Rating | Higher | Lower |
| Temperature Capability | Higher | Moderate |
| Seat Wear | Reduced | Greater |
| Service Life | Longer | Standard |
| Cost | Higher Initial Cost | Lower Initial Cost |
For critical industrial applications, high performance butterfly valves often provide better long-term value despite a higher purchase price.
How to Choose the Right High Performance Butterfly Valve
Evaluate Operating Pressure
Select a valve rated for your system pressure requirements.
Consider Temperature Range
Ensure seat and body materials can withstand operating temperatures.
Check Media Compatibility
Consider:
- Corrosion potential
- Chemical composition
- Fluid characteristics
Select Appropriate Actuation
Available options include:
- Manual gearbox
- Pneumatic actuator
- Electric actuator
Automation improves operational efficiency and process control.
Quality Standards and Certifications
Reliable manufacturers test every valve for performance and safety.
Common Testing Procedures
- Hydrostatic testing
- Seat leakage testing
- Torque testing
- Operational cycle testing
Industry Standards
Look for compliance with:
- ISO 9001
- API Standards
- CE Certification
Industry references:
For industrial butterfly valve solutions, visit:
https://hongonvalve.com/
Frequently Asked Questions
What is a high performance butterfly valve?
A high performance butterfly valve is a double-offset butterfly valve designed for higher pressure, temperature, and sealing requirements.
What is the difference between standard and high performance butterfly valves?
High performance valves feature offset disc designs that reduce wear and improve sealing performance.
Where are high performance butterfly valves used?
They are commonly used in oil and gas, chemical processing, power generation, and industrial manufacturing.
Can high performance butterfly valves handle high temperatures?
Yes. Metal-seated designs are specifically engineered for elevated-temperature applications.
Are high performance butterfly valves suitable for automation?
Yes. They are frequently equipped with electric or pneumatic actuators.
What materials are available?
Common materials include stainless steel, carbon steel, and duplex stainless steel.
Conclusion
A high performance butterfly valve is the preferred choice for industrial systems that demand superior sealing, high-pressure capability, and long-term reliability. With advanced double-offset designs, durable materials, and excellent flow characteristics, these valves deliver exceptional performance across a wide range of critical applications.
Whether installed in an oil refinery, chemical plant, power station, or marine facility, selecting the right high performance butterfly valve can significantly improve efficiency, reduce maintenance costs, and enhance operational safety.
